HD-CVI 20X IR PTZ 2.4MP 1080p

HD-CVI 20X IR PTZ 2.4MP 1080p

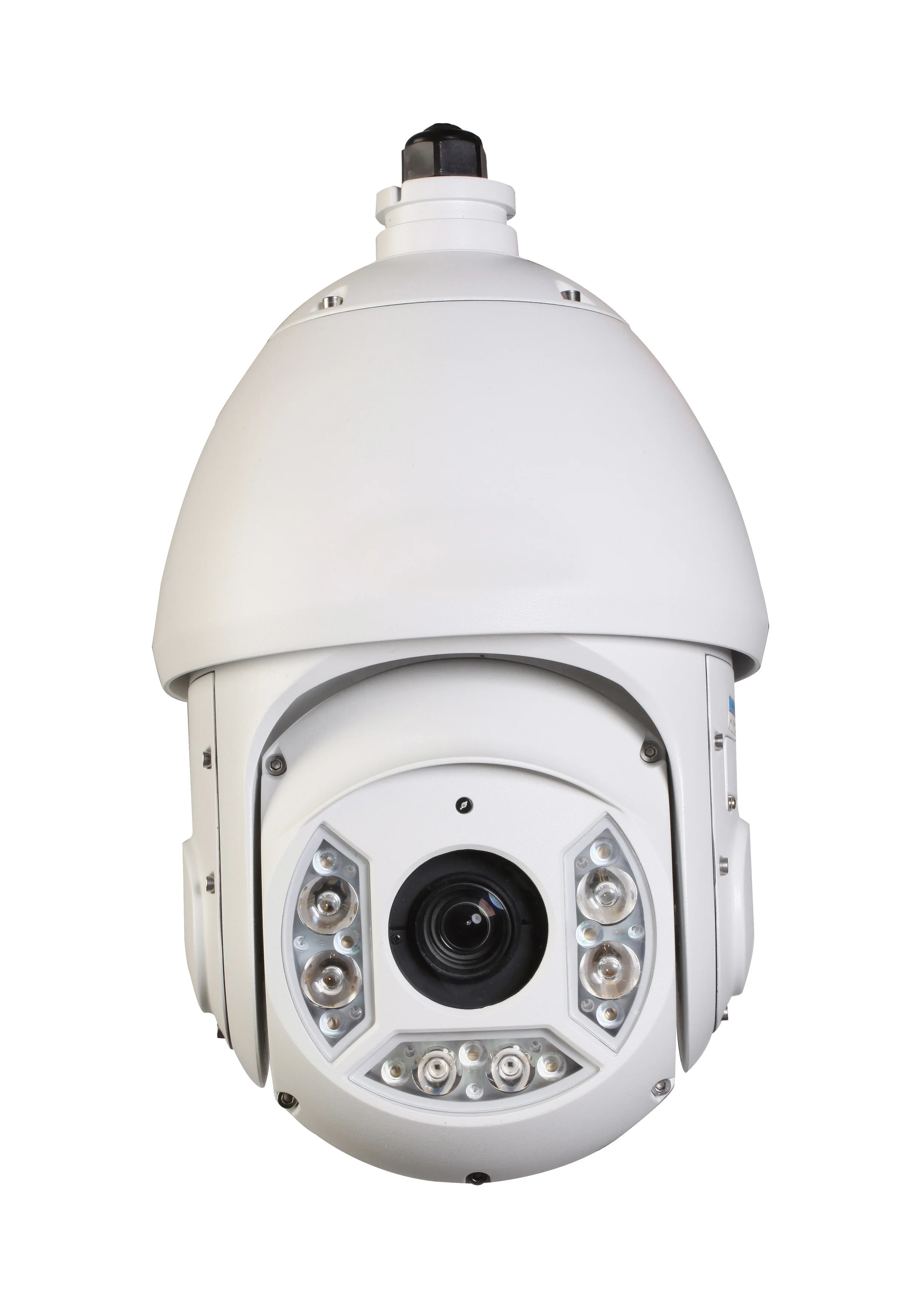

1080p HD-CVI PTZ! This Pan Tilt Zoom camera has a 20X Optical Zoom Lens and the detail is incredible. You will need to connect this security camera to a 1080p HD-CVI DVR, or one of our Tribrids, in order to use it. HD-CVI is a newer security camera technology that enables High Definition video to be transmitted over standard coax cable. One major benefit to HD-CVI is that video, audio, and control of the PTZ and OSD (On screen Display) is all transmitted through the same RG59 Video Cable. This means that their are no extra wires to fumble with when installing this camera.

Add To Cart


Max Resolution:1080p

Image Sensor:1/2.8 inch Exmor CMOS

Lens:4.7mm~94mm (20x Optical zoom)

Minimum Illumination:Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on)

LEDs:(2 near IR LED + 4 far IR LED)

IR Distance:250 Feet


Protocol:DH-SD, Pelco-P/D

Pan Rotation:0° ~ 360° endless

Tilt:-15° ~ 90°, auto flip 180°

Touring:5 Pattern, 8 Tour, Auto Pan, Auto Scan

Operating Temperature:-40F to +140

Dimension:12 in x 12in x 21in

Power:24v AC | 3A
