1080p 2.4MP w/OSD 3.6mm fixed IBF-680

1080p 2.4MP w/OSD 3.6mm fixed IBF-680

0.00

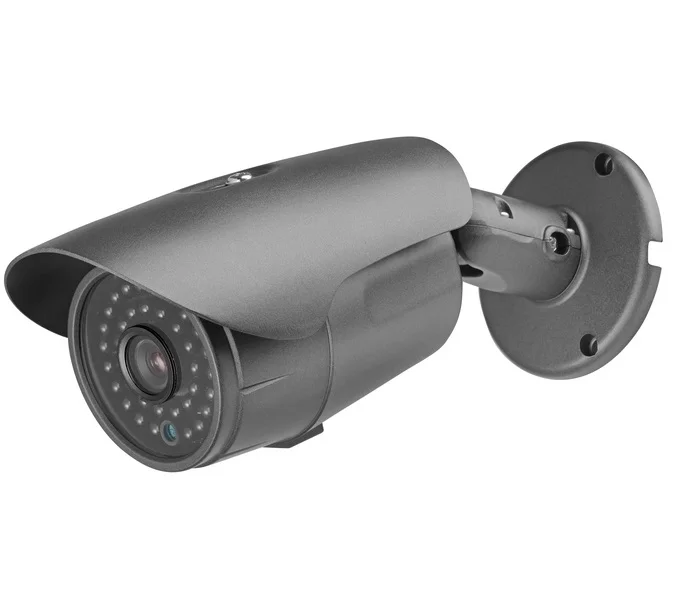

HD-CVI fixed lens water-resistant IR bullet camera, 1/2.8” 2.4 Megapixel SONY CMOS, 30fps@1080P, 3.6mm lens, 36 IR LEDs, metal housing, IP66, DC 12V.  900ft long distance real-time video/OSD control over coax. Separate BNC ports for analog and HDCVI output.

OSD - ON SCREEN DISPLAY

2 Year Warranty


COLOR:
Quantity:
Add To Cart

Model

IBF-680B(W)(ZA)

IP Rating

IP66

Image Sensor

1/2.7” 2 Megapixel CMOS

Horizontal Resolution

NTSC: 1920(H)X1080(V)

Frame Rate

30fps@1080P

Minimum Illumination

0 Lux (with IRs ON)

Lens

3.6mm Fixed Lens

S/N Ratio

MORE THAN 50dB

IR LEDs

850nm, 36 LEDs

IR Distance

100ft Depending on Scene Reflectance

Video Standard

NTSC

Electronic Shutter

Auto: 1/60 ~ 1/30,000s

Digital Noise Reduction

2D DNR

White Balance

Auto

Video Output

75 Ohm BNC for HD-CVI

Power Supply

DC 12V, Max 4W

Operating Temperature

-20C ~ 50C (-4F ~ 122F)

Dimensions, Weight

2.76” (H) x 7.13” (L), 1.1 lbs.
